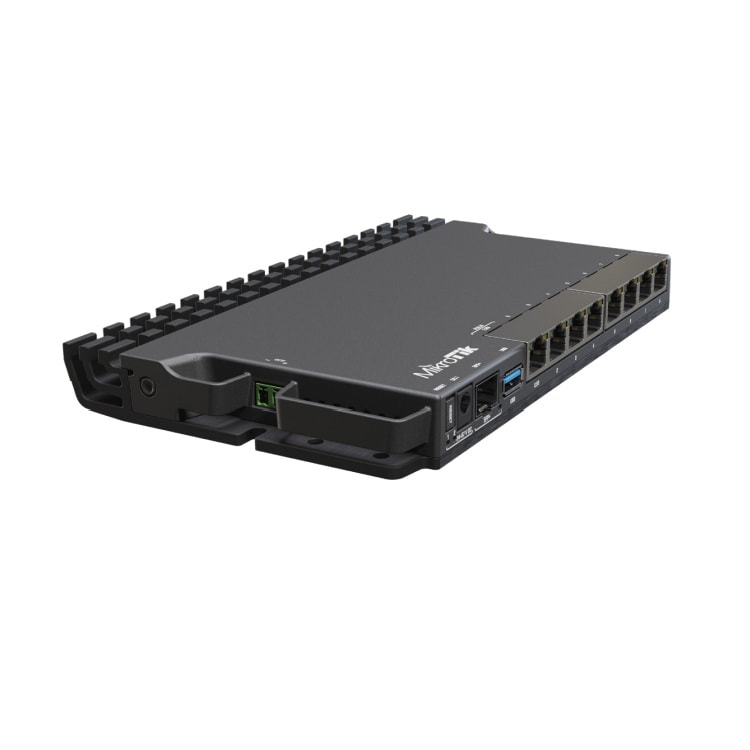

MikroTik Router 7x 1GbE / 1x 10G SFP+ / 1x 2.5GbE Ports
- SKU: RB5009UG+S+IN
$212.43 $219.00
Product Information
The MikroTik RB5009UG+S+IN, featuring 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board, so the case acts as a massive heat-sink!
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to other MikroTik products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
Product Features
- 9-Ports - 7x 1GbE Ports, 1x 2.5 GbE Port, 1x 10G SFP+ Port
- Heavy Duty Indoor Case
- Marvell 88E6393 Switch Chip 10GB full duplex line
- Marvell Armada Quad-core ARMv8 CPU 1.4GHz
- Mount up to four RB5009 Series in the same 1U Rackmount Space
- Redundant Power Supply
Product Includes
- K-55 Screw Kit
- 24V 1.5A Power Adapter
- 3M988T one side adhesive, black, 1.5mm
Specifications
Specifications RB5009UG+S+IN
| CPU | 88F7040 1.4 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 4 |
| Size of RAM | 1 GB |
| RAM type | DDR4 |
| Storage | 1 GB, NAND |
| Number of 1G Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 10G SFP+ ports | 1 |
| USB port | 1 (3.0 type A) |
| Operating system | RouterOS (License level 5) |
| Switch chip model | 88E6393 |
| Dimensions | 220 x 125 x 22 mm (8.66" x 4.92" x 0.86" in) |
| Operating temperature | -40°C to +60°C |
| Powering | |
| PoE-in | 802.3af/at |
| Number of DC inputs | 3 |
| Supported input voltage | 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal) |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.5 A |
| Max power consumption (without attachments) | 14 W |
| Max power consumption | 20 W |
| Certification | CE, FCC, IC |
