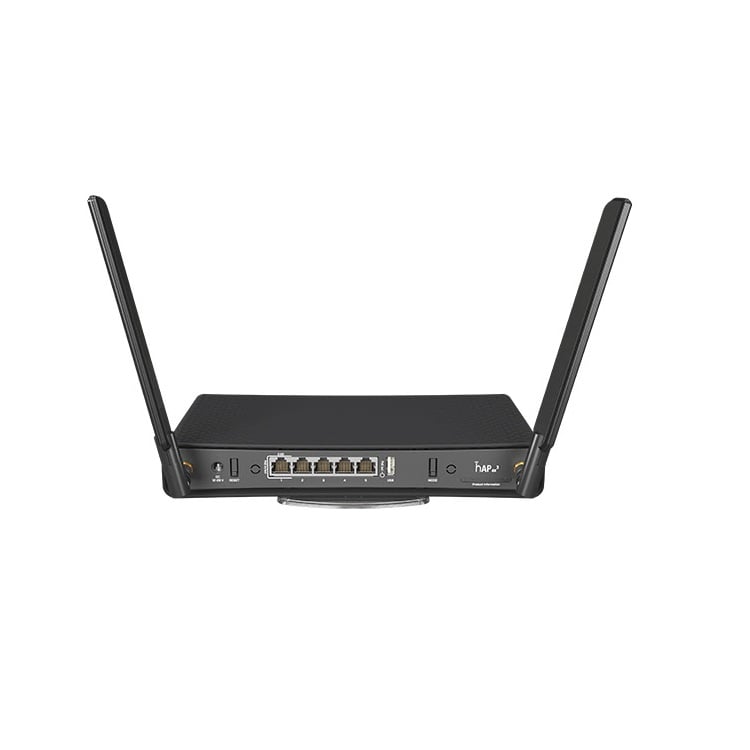

MikroTik hAP ax3 Home Access Point (US)
- SKU: C53UiG+5HPaxD2HPaxD-US
$134.83 $139.00
+ $9.90 Tariff
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The MikroTik hAP ax³ is MikroTik's most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop browsing comfortably, streaming, gaming, etc. There is a speedy USB 3 port for storage purposes or an additional LTE modem.
Product Features
- Powerful 1.8GHz ARM CPU
- 802.11AX + WAVE2 Wireless
- Strong dual-band, dual-chain wireless (up to 5dBi)
- 4x Gigabit Ethernet Ports
- PoE-in & PoE-Out
- WPA3
- RouterOS L6
Product Includes
- MikroTik hAP ax³ home access point
- 24V 1.5A power adapter
- HGO indoor antenna kit
- K-47 wall mount set
- hAP case base
Specifications
Specifications C53UiG+5HPaxD2HPaxD-US
| CPU | Quad-Core IPQ-6010 1.8 GHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 1 GB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 4 |
| Number of 2.5G Ethernet ports | 1 (supports PoE-in/out) |
| USB | 1 USB 3 type A |
| Switch chip model | IPQ-6010 |
| Wireless interface model | QCN-5022 (2.4 GHz), QCN-5052 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Wireless antenna max gain | 2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi) |
| Dimensions | 251 x 130 x 39 mm 9.88" x 5.11" x 1.53" |
| Operating system | RouterOS, License level 6 |
| Operating temperature | -40°C to +70°C |
| Number of DC inputs | 2 (PoE-in, DC jack) |
| PoE-in input Voltage | 18-28 V |
| DC jack input Voltage | 12-28 V |
| PoE-out | Passive PoE Ether1, max out per port output (input < 30 V): 0.625 A |
| PoE-out total output power | 15 W |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.5 A |
| Max power consumption (without attachments) | 15 W |
| Max power consumption | 38 W |
| Wireless specifications | ||
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 27 | -100 |
| 11MBit/s | 27 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 29 | -96 |
| MCS7 | 26 | -75 |
| MCS9 | 24 | -70 |
| MCS11 | 22 | -67 |
| Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 28 | -96 |
| 54MBit/s | 26 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 25 | -75 |
| MCS9 | 23 | -70 |
| MCS11 | 20 | -67 |
