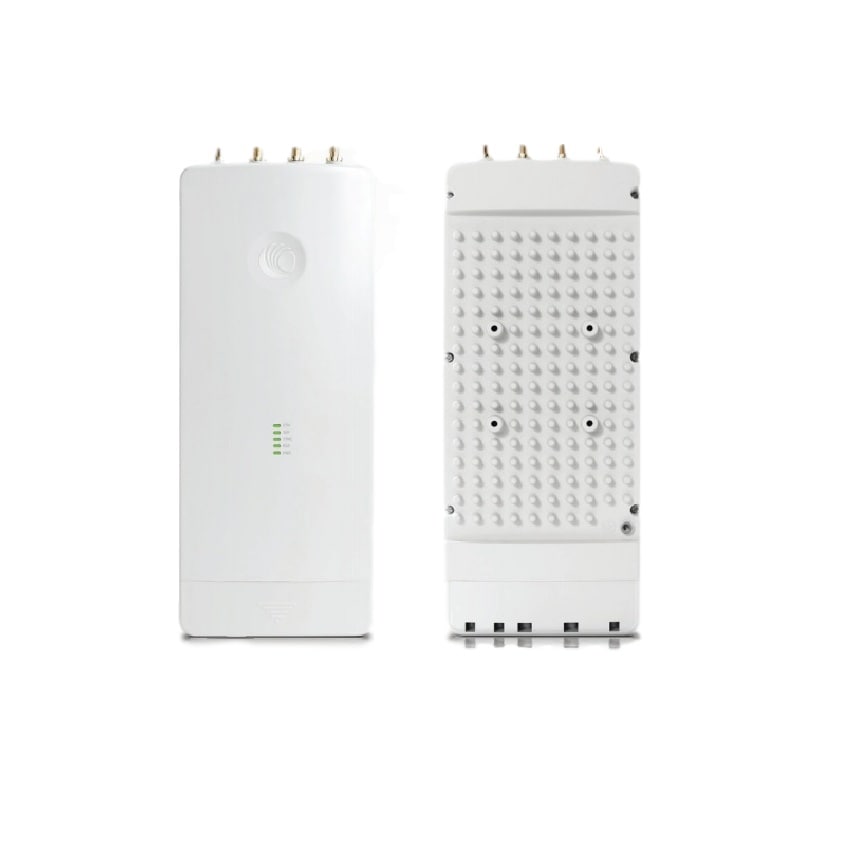

Cambium Networks ePMP 3000 5GHz Access Point Radio (FCC)
- SKU: C058910A102A
$349.00 $1,034.03
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The ePMP 3000 Access Point series is the third generation based on 802.11ac Wave 2 techology. ePMP 3000 Access Points interoperate with Force 300 Subscriber Modules (SM) and supports backward compatiblity. ePMP 3000 Access Points can deliver up to 600 Mbps aggregate to each Force 300 SM. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 3000 and 3000L to deliver consistently high-quality service plans to a large number of end users.
Product Features- Can deliver 1.2Gbps serving 120 of more subscribers
- Features 4x4 MU-MIMO and dual overlapping sectors
- Can transmit to two SM’s at the same time
- Power Consumption: 25W Maximum
- Input Voltage: 44v to 59V
- GPS synchronization via internal GPS or Cambium Sync
Specifications
Specifications C058910A102A
| Channel Spacing | Configurable on 5 MHz increments |
| Frequency Range | 4910 – 5980 MHz (exact frequencies as allowed by local regulations) |
| Channel Width | 20 | 40 | 80 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 4X4 MUMIMO/OFDM |
| Ethernet Interfaced | 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| Powering Methods Supported | 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| PERFORMANCE | |
| Subscribers per Sector | Up to 120 |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 , -92 MCS 8 supported by Wi-Fi -68 |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0, -89 MCS9, -64 |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0, -86, MCS9 - 61 |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS 9 (256 QAM 5/6) |
| GPS Synchronization | Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna) |
| Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support* |
| DSO* | Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel |
| Fast DFS* | Change to alternate radar free channel with background availability check |
| LINK BUDGET | |
| Antenna | Sector Antenna (C050910D301A ) Available |
| Transmit Power Range | 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval) |
| PHYSICAL | |
| Sector Antenna Connection | 4 x 50 ohm, RP (Reverse Polarity) SMA |
| Beamforming Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna) |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA |
| Surge Suppression | 1 Joule Integrated. C000000L033A - 56V Gigabit surge suppressor recommended for optimal surge protection |
| Environmental | IP55 |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Power Consumption | 25 W Maximum 1 |
| Input Voltage | 44 V to 59 V |
| Weight | 0.7 kg (1.5 lbs) without brackets |
| Dimensions (L x W x H) | 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets |
| SECURITY | |
| Encryption | 128 bit AES (CCMP mode) |
| CERTIFICATIONS | |
| FCCID | Z8H-89FT0024** |
| INDUSTRY CANADA | 109W-0024** |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
